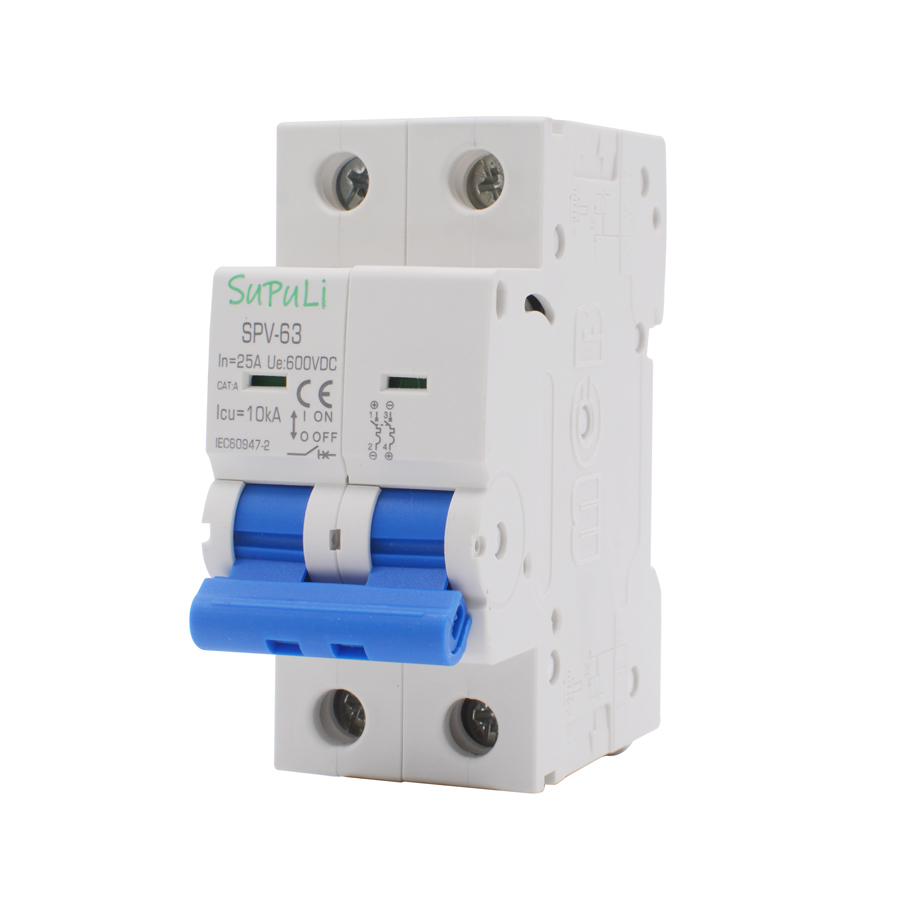

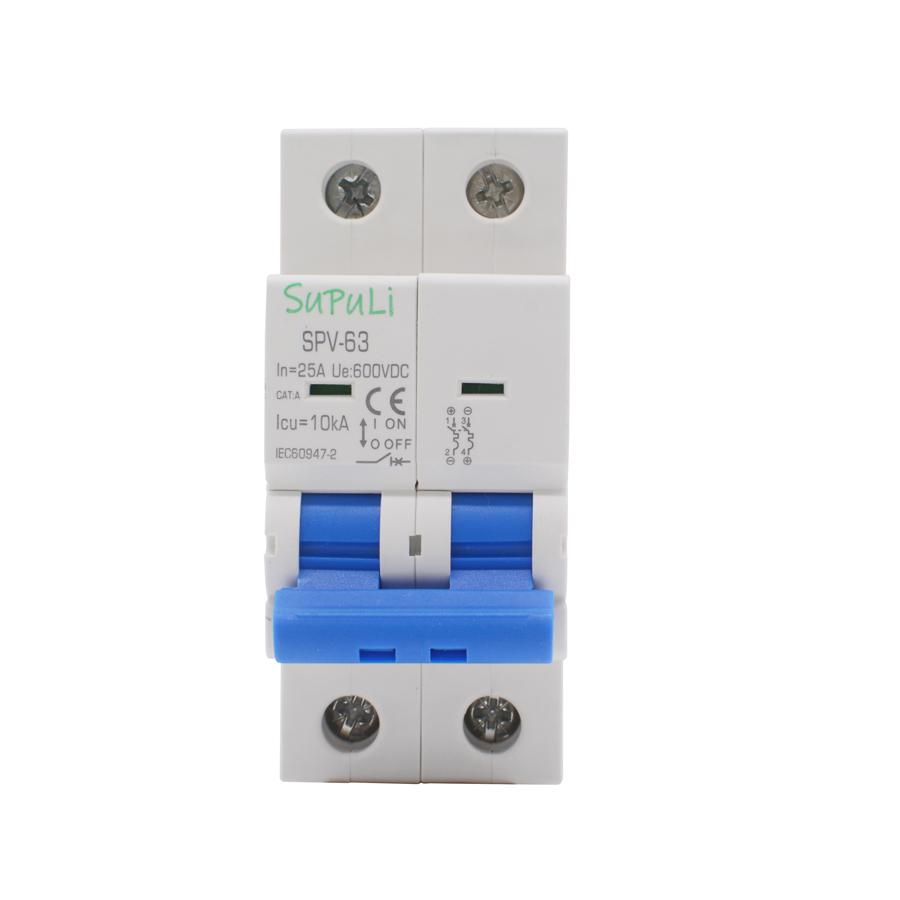

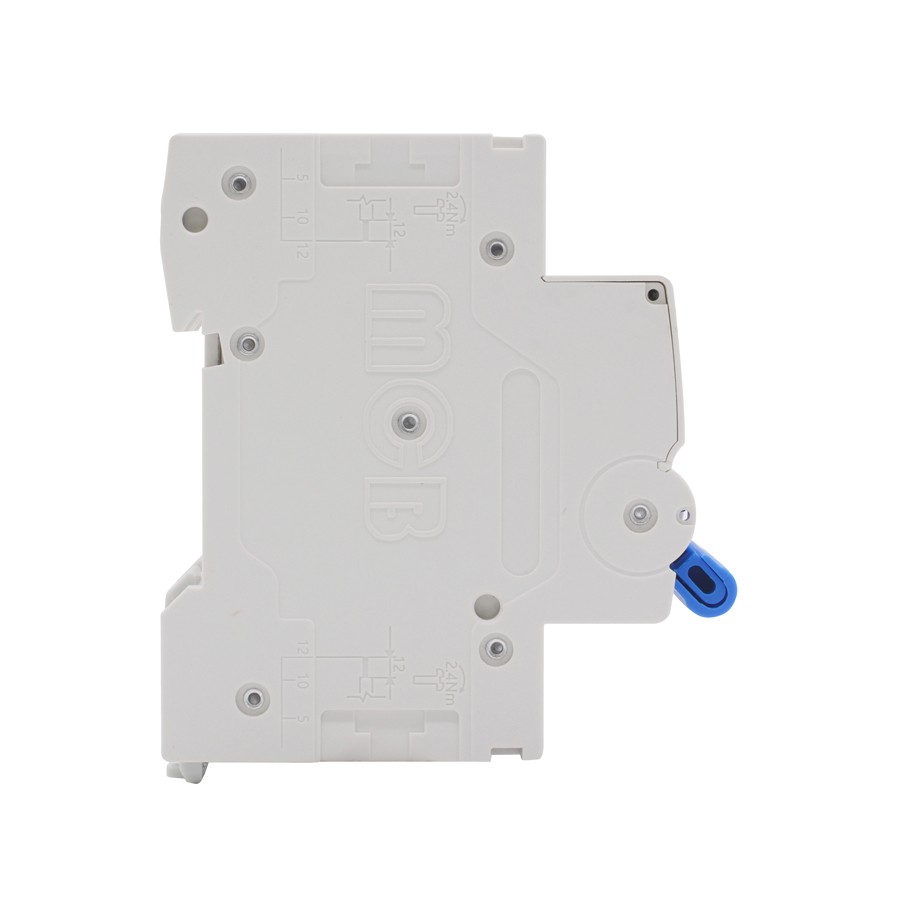

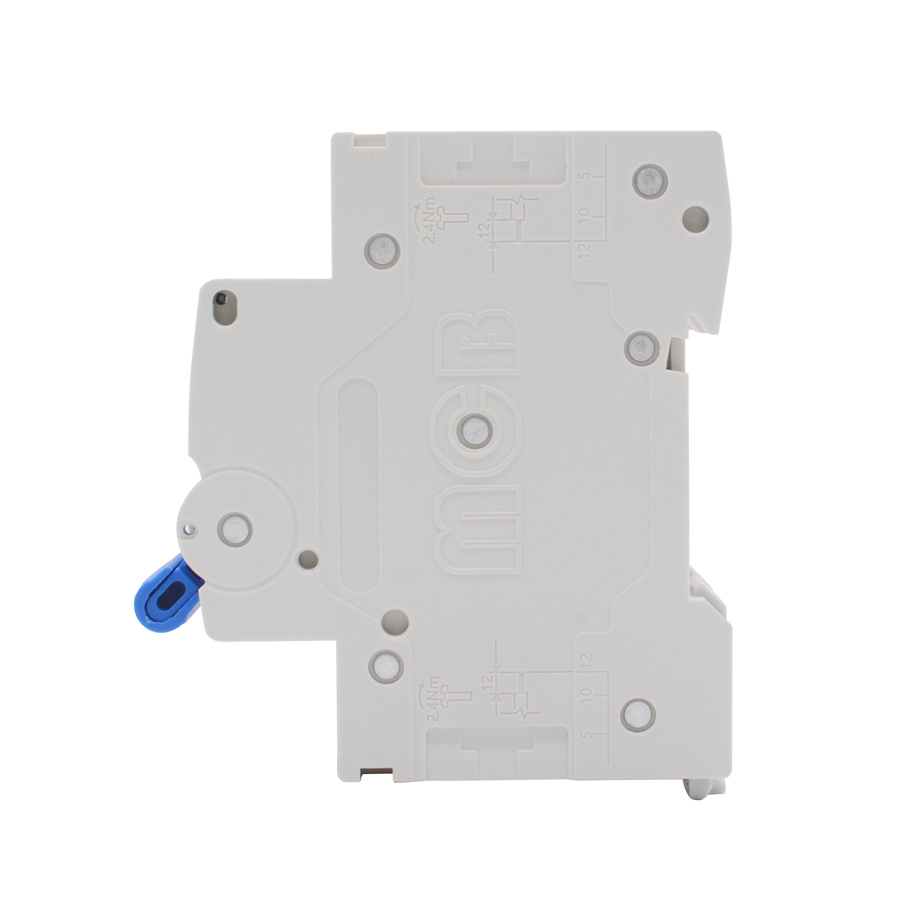

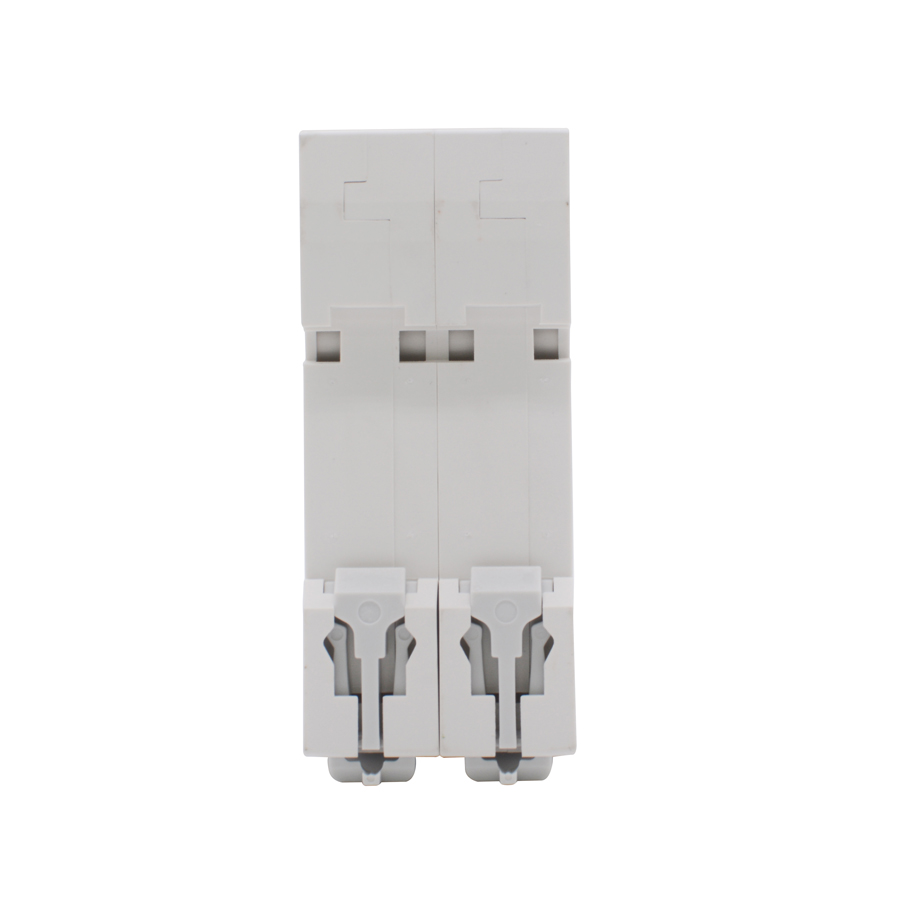

DC BREAKER 2POLE 25A 10KA 600V MCB DC MINIATURE BREAKERS CIRCUIT

Short Description:

DC MCB supplementary protectors are designed to provide over-current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications....

Send email to us

Product Details

Product Tags

Product Name	Dc Breaker 2pole 25a 10ka 600v Mcb Dc Miniature Circuit Breaker Dc Dc Battery Breaker
Rated voltage	600V
Rated current	25A
Breaking capacity	10kA
Poles	2P
Working Temperature	-35°C-70°C
Certificate	TUV 、CE、ROHS、
Features	1. Overload and the short circuit protection function 2. Non-polarity and Polarity both available 3. Rated short circuit breakingcapacity up to 10kA 4. Rated Voltage up to 600V 5. Rated Current In up to 25A 6. Designed for PV, energy storage and other DC applications 7. 2 years warranty, product insurance, and recall insurance available
